Face ID X

Face ID X | FingerTec

Face ID X
Face ID 2, Remastered

2 YEARS LIMITED WARRANTY

8x More Memory &
25x More Face Template

More Power, More Efficient

	Face ID X (1GB SDRAM / 1GB Flash)	Face ID 2 (128MB Nand flash)
Transactions	1,000,000	200,000
Face	3,000 (1:N), 30,000 (1:1)	1,200
Fingerprint	10,000
Card	10,000

Verification & Communication Method

Accommodate Various Needs

Verification

Face
Fingerprint
Password
Card


Face	Fingerprint

Password	Card

Communication

	TCP/IP
	RS232 or RS485
	USB disk
	WiFi or 4G (optional)


TCP/IP	RS232 or RS485

RS232 or RS485	WiFi or 4G (optional)

Night & Day Recognition

Never Out of Sight

Multiple Card Options

Choose One Option For Your Security Needs

RFID • MiFare • HID

Swift & Accurate Verification

Incomparable Swiftness & Accuracy

False Acceptance Rate	< 0.01%
False Rejection Rate	< 0.1%
Speed	< 2 sec

Face

Fingerprint

< 0.0001%	False Acceptance Rate
< 0.1%	False Rejection Rate
< 1 sec	Speed

Vivid Touch Screen Display with Intuitive UI
Everything Within Your Fingertips

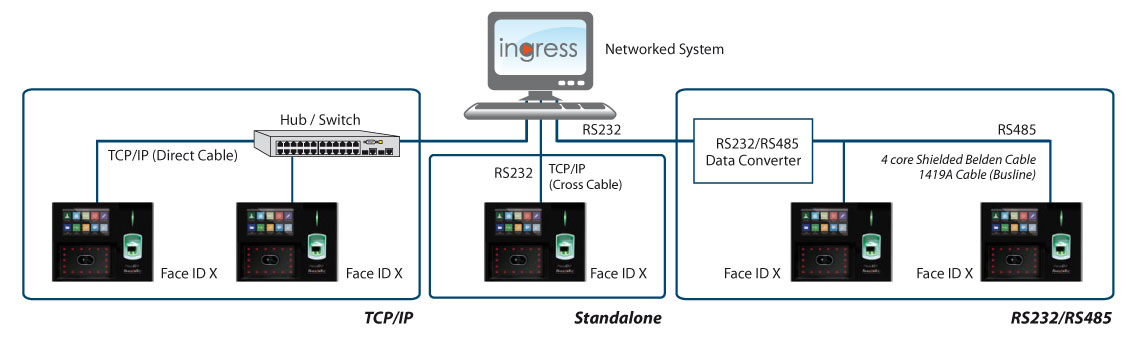

Layout Plan

System Communication
For illustration only

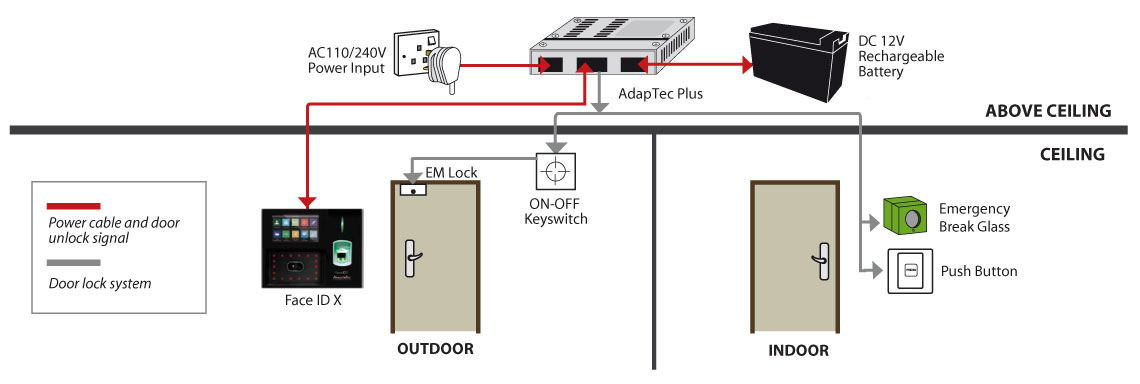

Installation Diagram

Specification

MODEL	Face ID X
SURFACE FINISHING	Acrylonitrile Butadiene Styrene (ABS) & Acrylic
TYPE OF SCANNER	Hi-res infrared camera & fingerprint scanner
PROCESSOR	1.2GHz
MEMORY	1.0GB SDRAM/ 1.0GB flash
ALGORITHM	Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0
PUSH TECHNOLOGY	Yes
PRODUCT DIMENSION (L X W X H), mm	194 x 110 x 145
STORAGE
• Fingerprint templates	10000
• Face templates	3000 (1:N), 30000(1:1)
• Card	10000
• Transaction logs	1000000
ENROLLMENT & VERIFICATION
• Methods	Face (1:1, 1:N), fingerprint (1:1, 1:N), card & password
• Recommended fingerprint per user ID	2
• Fingerprint placement	Any angle
• Verification time – Face, sec	<2
• Verification time – Fingerprint, sec	< 1
• Fingerprint	FAR < 0.0001%, FRR < 0.1%
• Face	FAR < 0.01%, FRR < 0.1%
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330)	Yes
• MIFARE: MFIS50/S70, 13.56MHz	Made to order
• HID: HID 1325, 26-bit, 125kHz	Made to order
COMMUNICATIONS
• Method	TCP/IP, RS232, RS485, USB disk (Optional WiFi & 4G)
• Baud rates	9600, 19200, 38400, 57600, 115200
• Wiegand	26-bit output
OPERATING ENVIRONMENT
• Temperature (°C)	0 ~ 45
• Humidity (%)	20 ~ 80
• Power input	DC 12V 3A
TIME ATTENDANCE
• Siren	Internal and external
• Work codes	Yes
• Fast Transaction Checking	Yes
MULTIMEDIA
• Display	4.3” 65K color TFT Touch Screen Panel
• Photo-ID	Yes
• Short messaging	Yes
• Day Light Saving Timer	Yes
• Internal Backup Battery	Yes (DC 12V, 2000mAh)
ACCESS CONTROL
• EM lock driving output	DC12V / Relay output
• Alarm output	NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL)	English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish and Persian. Other languages are available upon request.
