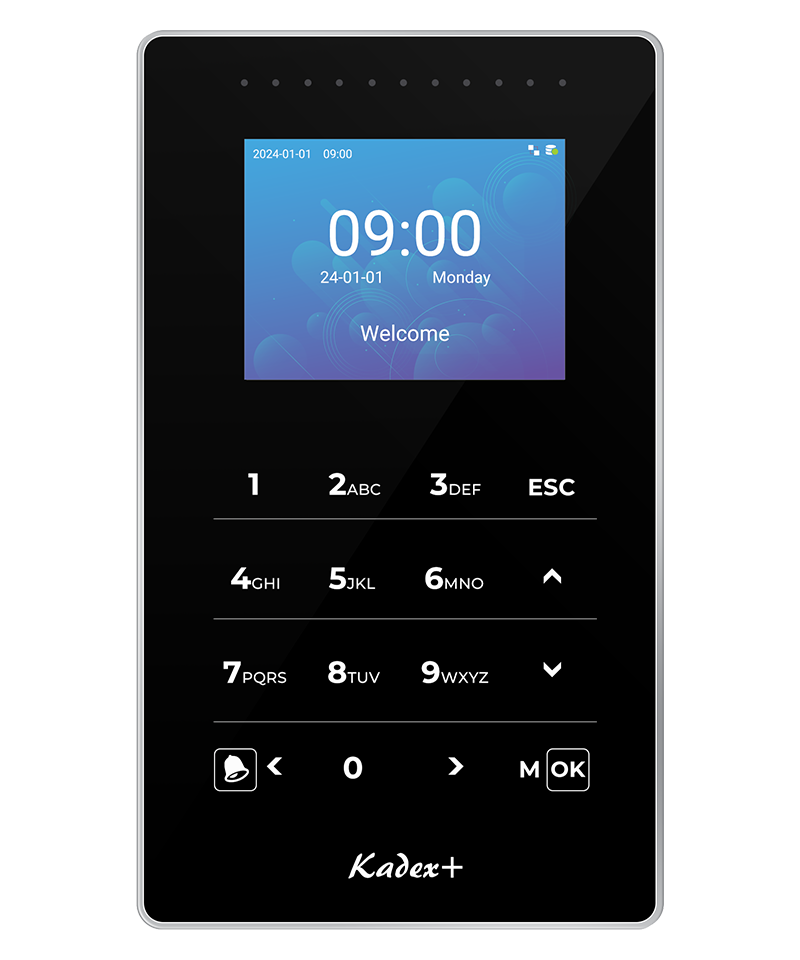

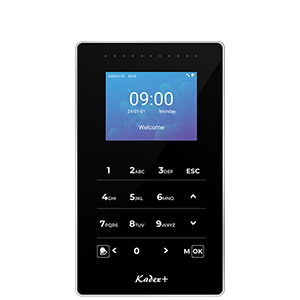

Kadex+
Robust & Waterproof Device



2 YEARS LIMITED WARRANTY
Storage Capacity

Large Yet Compact
Transactions
200,000
Cards
50,000
Multiple Verification & Communication

Options For All Scenarios
Verification
Password
Card
Password Card


Communication
TCP/IP
Wiegand (Slave reader)
RS232 (Only for printer)
RS485 (Slave reader)
TCP/IP Wiegand (Slave reader) RS232 (Only for printer)
RS485 (Slave reader)

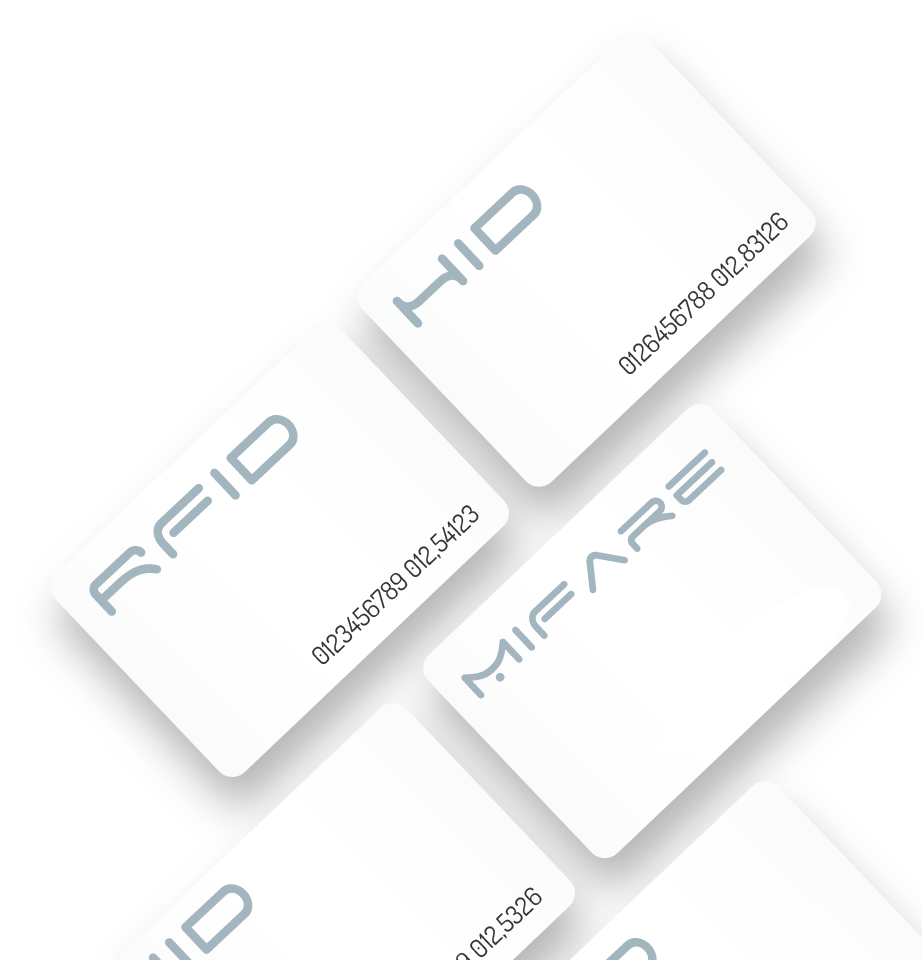

Different Card, Different Purpose

Choose One That Suits You

RFID MiFare HID

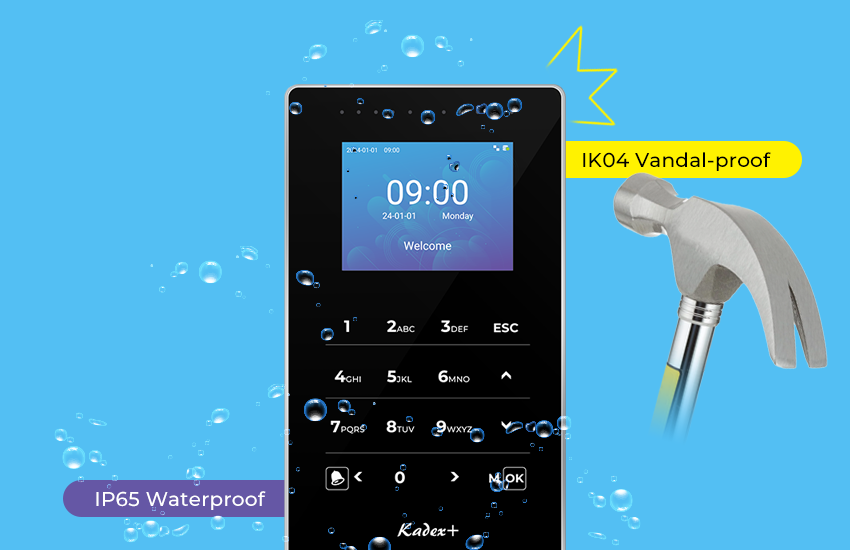

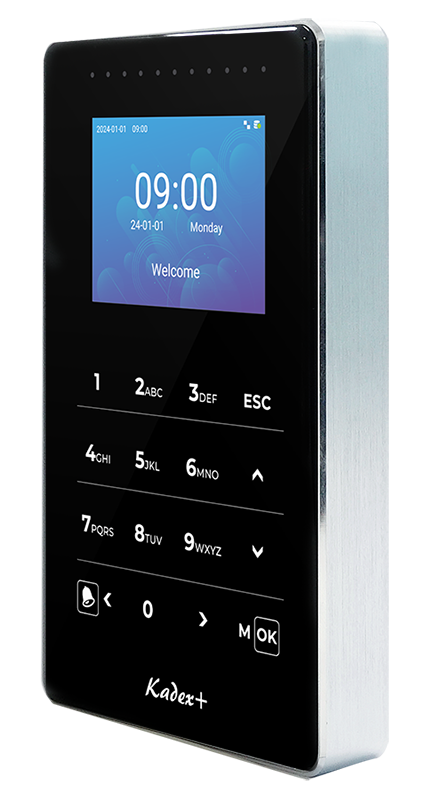

Waterproof & Vandal-proof

Made to Last
Layout Plan

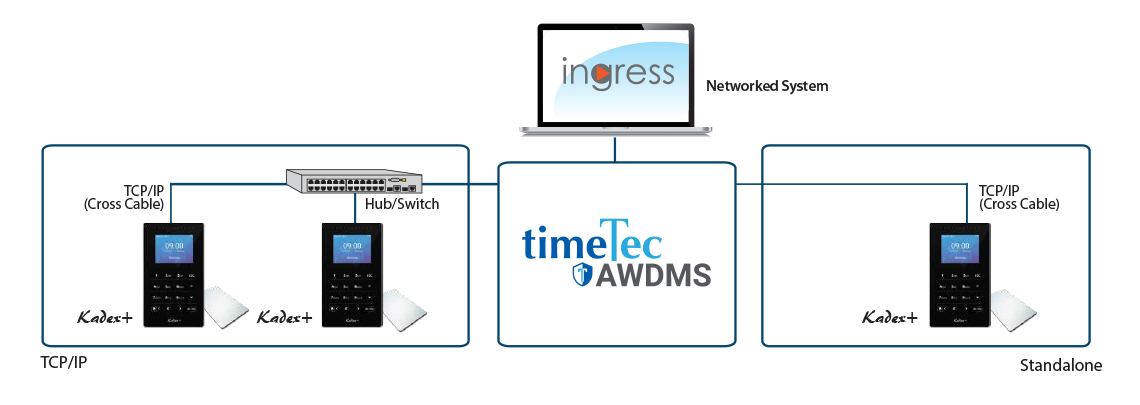

System Communication
For illustration only

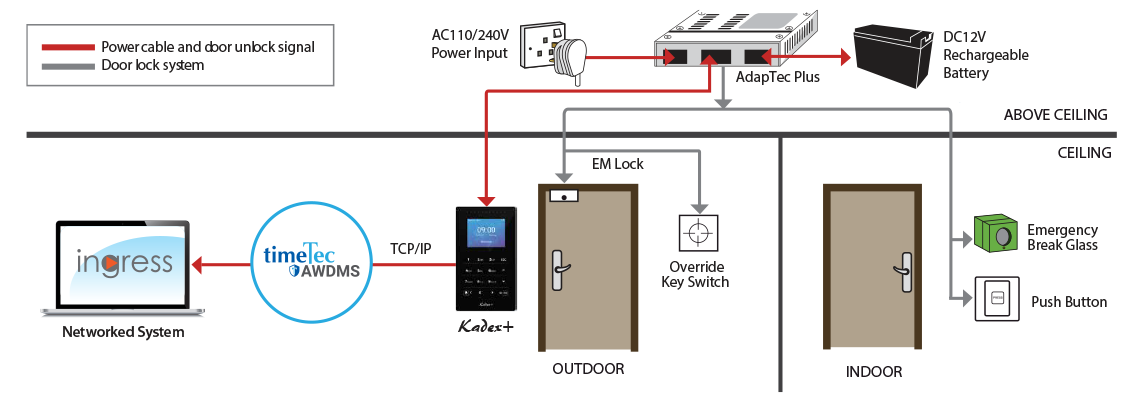

Installation Diagram
Specification
MODEL Kadex+
SURFACE FINISHING Glass with metal frame
TYPE OF ANTENNA RFID
MICROPROCESSOR 1GHz Dual Core CPU
MEMORY DDR2 64M, Flash 256M
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 85 x 19.8 x 143
STORAGE
• Card 50,000
• Transaction logs 200,000
ENROLLMENT & VERIFICATION
• Methods Card & password
• Card per user ID 1
• Reading distance, mm 30 (RFID)
• Verification time (sec) < 1s
CARD TECHNOLOGY
• RFID: ISO 7816, 64-bit, 125kHz Yes
• MIFARE: ISO 14443-A, MFIS50/S70, 13.56MHz Made to order
• HID: HID 1326, 26-bit, 125kHz Made to order
COMMUNICATIONS
• Method TCP/IP, Wiegand (secondary reader), RS485 (secondary reader), RS232 (for printer only)
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26 to 34 bit
OPERATING ENVIRONMENT
• Temperature (°C) -10 ~ 55
• Humidity (%) 10 ~ 90
• Power input DC 12V 2A
MULTIMEDIA
• Voice Yes
• Display 2.4” touch keypad
ACCESS CONTROL
• EM lock driving output Yes
• Alarm output/Auxiliary input Yes
• Exit button/door sensor Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Persian, Portuguese, Spanish, Traditional Chinese, Vietnamese.
Other languages are available upon request.
SOFTWARE
Ingress
TCMS V3 MySQL TCMS V3 MySQL
(Attendance only)
APPLICATION (optional)
Time Attendance Time Attendance
Attendance Access
What's in the Box

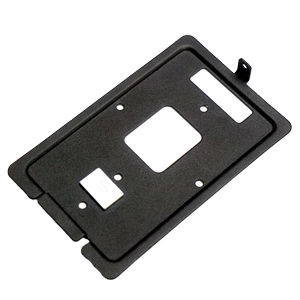

Kadex+ Back Plate

Product Card

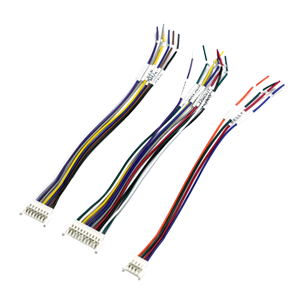

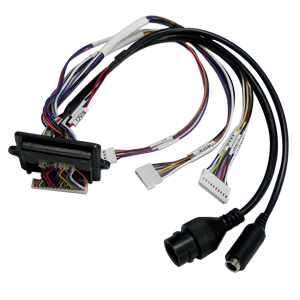

Cable Set

Cable Set

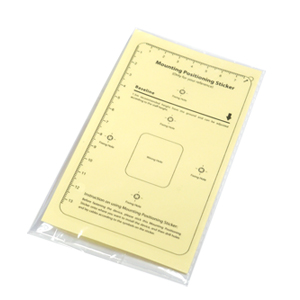

Mounting Sticker

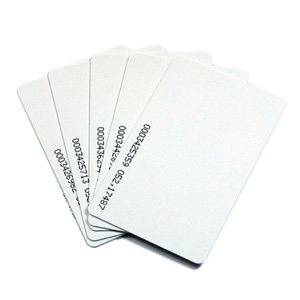

RFID Card (5pcs)

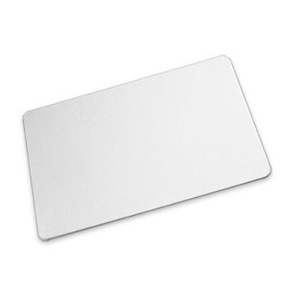

1pc MIFARE Card (only for Kadex+ MC)

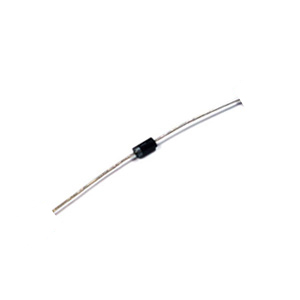

Diod

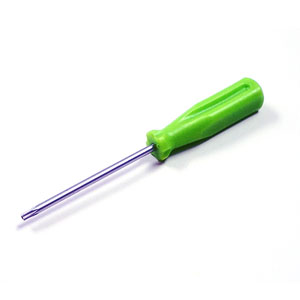

Star Screwdriver

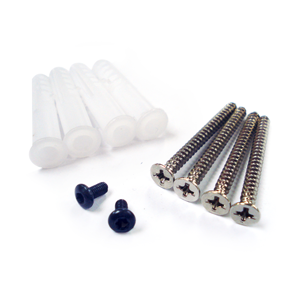

A Packet of Bolt
Product Information
Pricing: $$$
