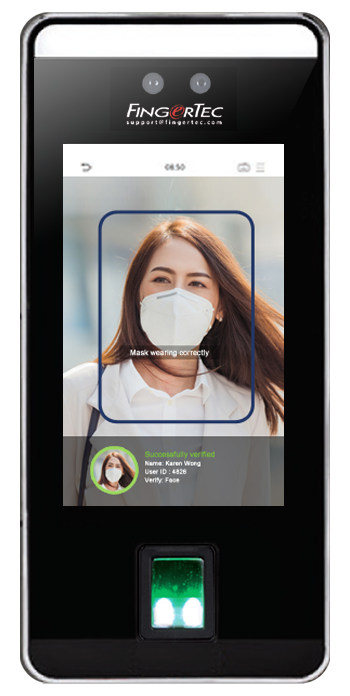

Face ID 5 | FingerTec

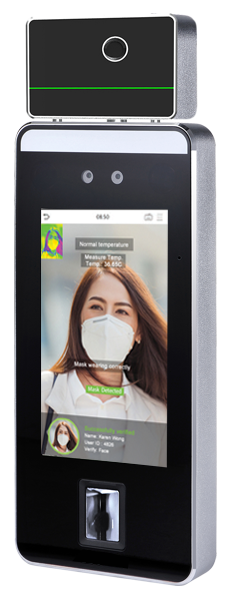

Face ID 5/ FTD Face ID 5
Face ID 5 Series
The Latest AI Facial Recognition for Door Access



2 YEARS LIMITED WARRANTY
Storage Capacity

Capacity Like No Other
Fingerprints
6,000
Faces
6,000
Palm
3,000
Transactions
200,000
Verification & Communication Method

Fully Comprehensive Solution
Verification
Face
Fingerprint
Password
Palm
Face Fingerprint Password

Palm


Communication

TCP/IP
RS485
WiFi (Optional)

TCP/IP RS485 WiFi (Optional)
Ultralight Proof Function

Designed for Low Light Conditions

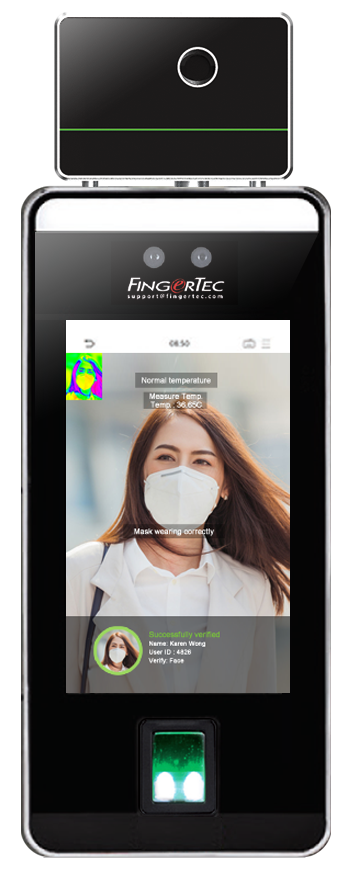

Mask On & Thermal

The New Normal Verification
Verification Within Seconds

Fast & Precise
False Acceptance Rate < 0.01%
False Rejection Rate < 0.1%
Speed < 2 sec
Face
Fingerprint
< 0.0001% False Acceptance Rate
< 0.1% False Rejection Rate
< 1 sec Speed
New Height of Anti-Spoofing

Ahead of The Threat

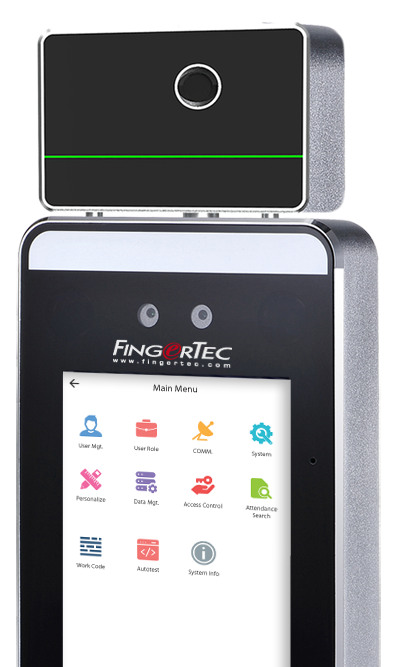

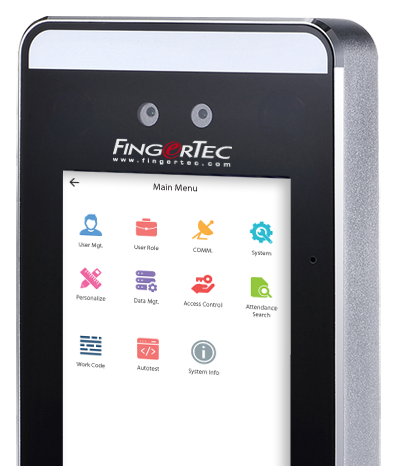

Navigation Made Easy With
5-Inch Touch Screen


Smooth User Flow

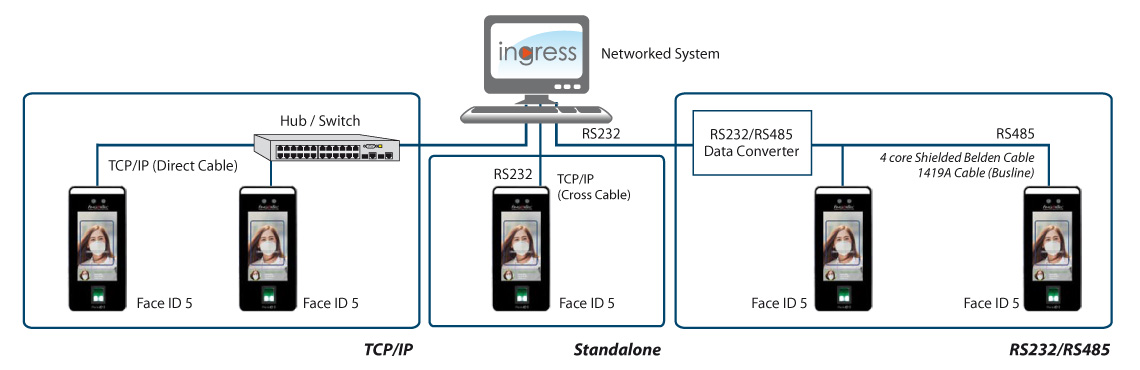

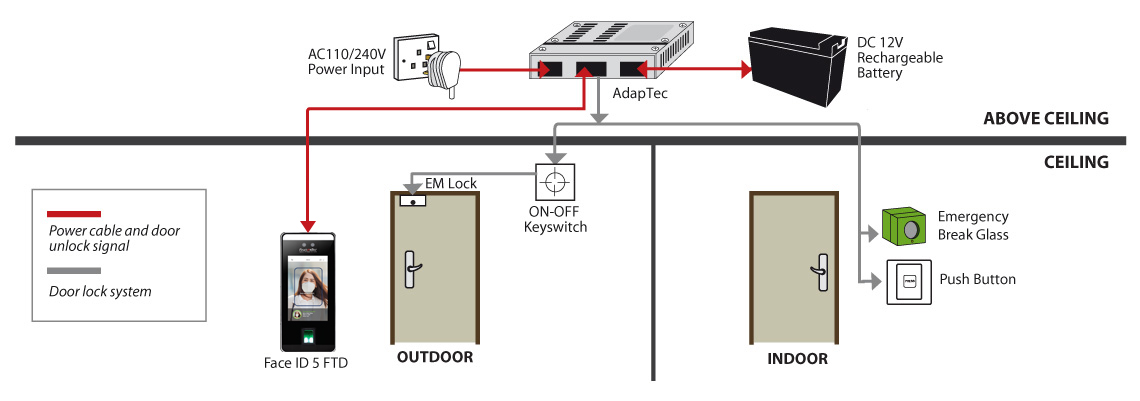

Layout Plan
System Communication
For illustration only
Installation Diagram
Specification
MODEL Face ID 5 / FTD Face ID 5
SURFACE FINISHING Glass with aluminium frame
TYPE OF SCANNER 2 MP WDR low light camera & high-resolution fingerprint scanner
MICROPROCESSOR 900 MHz dual-core CPU
MEMORY 512MB RAM, 8G flash
ALGORITHM Face: BioBridge VX 5.8, Fingerprint: BioBridge VX 10.0, Palm: BioBridge VM 12.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 92 x 23 x 262 92 x 23 x 203
STORAGE
• Face templates 6,000 6,000
• Fingerprint templates 6,000 6,000
• Palm templates 3,000 3,000
• Transactions 200,000 200,000
ENROLLMENT & VERIFICATION
• Methods Face (1:1, 1:N), Fingerprint (1:1, 1:N),
Palm (1:N) & Password
Face (1:N), Fingerprint (1:1, 1:N),
Palm (1:N), Password
• Verification time (sec) Fingerprint: <1s, Face: <2s, Palm: <0.35s
COMMUNICATIONS
• Method TCP/IP, R5485, WiFi (Optional)
• Wiegand Input/Output
OPERATING ENVIRONMENT
• Temperature (°C) 16 ~ 32 0 ~ 45
• Humidity (%) 10 ~ 90 10 ~ 90
• Power input DC 12V 3A
MULTIMEDIA
• Display 5” 65k colour TFT touch screen panel
• Photo-ID Yes
ACCESS CONTROL
• Lock relay output Yes
• Alarm output/auxiliary input Yes
• Exit button/ door sensor Yes
PREVENTIVE MEASURES
• Mask detection Yes
• Fever detection Yes N/A
• Fever measurement distance (cm) 30 - 50 N/A
• Fever detection speed > 0.3s N/A
• Temperature measurement range (°C) 34 ~ 45 N/A
• Temperature measurement accuracy (°C) +/_ 0.3 N/A
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard) Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

Ingress
Access Control & Time Attendance

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

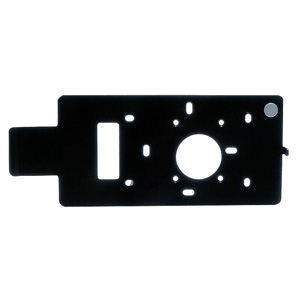

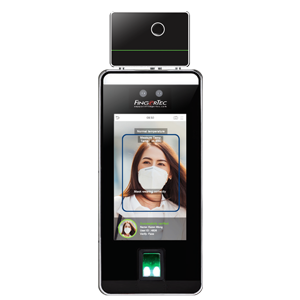

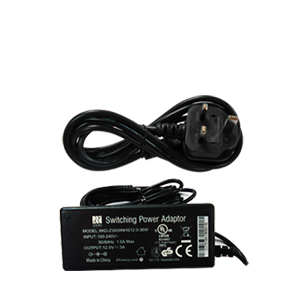

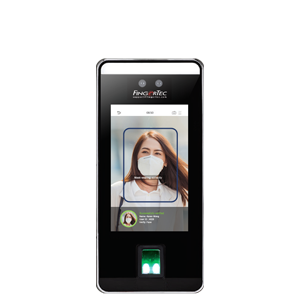

Face ID 5/FTD or Face ID 5 Back Plate DC 12V Power Adaptor

Product Card

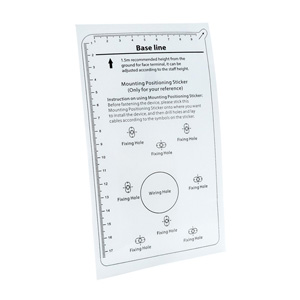

Mounting Sticker

A Packet of Bolt

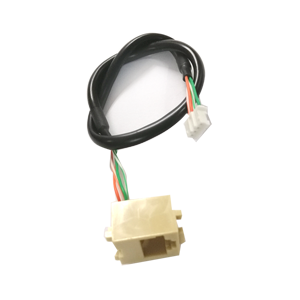

Network Adapter Cable

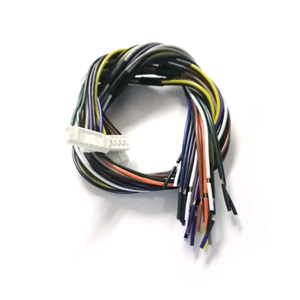

Power Adapter Cable

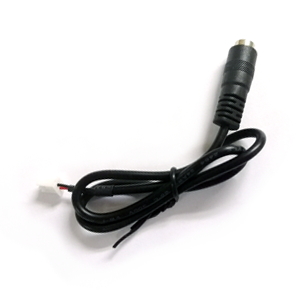

Data Cable


Star Screwdriver
Product Information
Pricing: $$$
