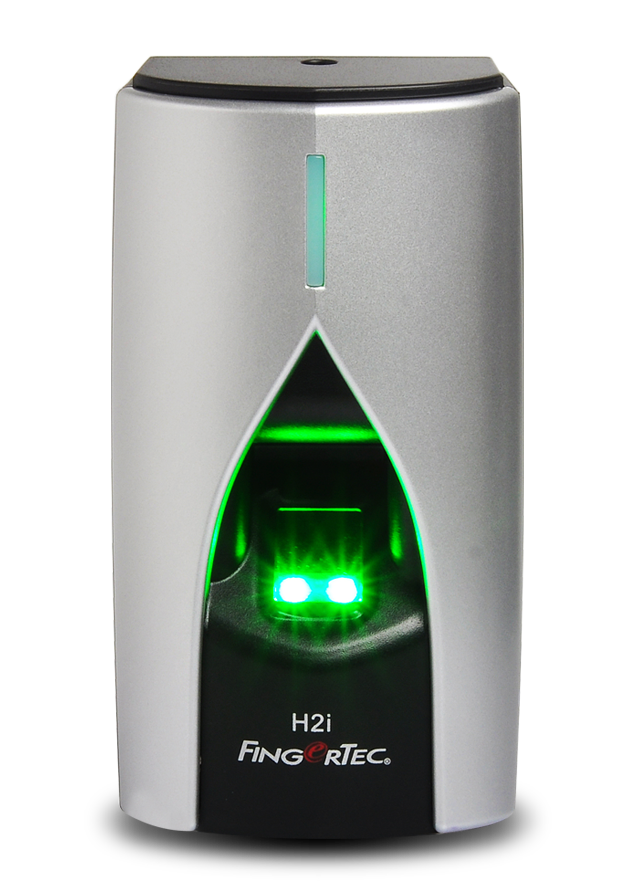

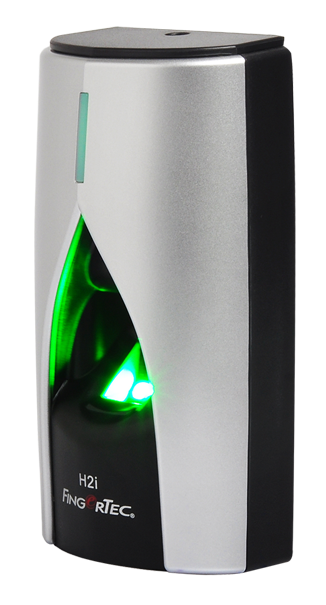

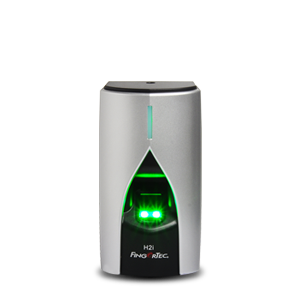

| MODEL |
H2i |
| SURFACE FINISHING |
Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER |
Non coated optical scanner |
| MICROPROCESSOR |
300 MHz |
| MEMORY |
256 MB flash memory & 32 MB SDRAM |
| ALGORITHM |
BioBridge VX 9.0 / VX 10.0 |

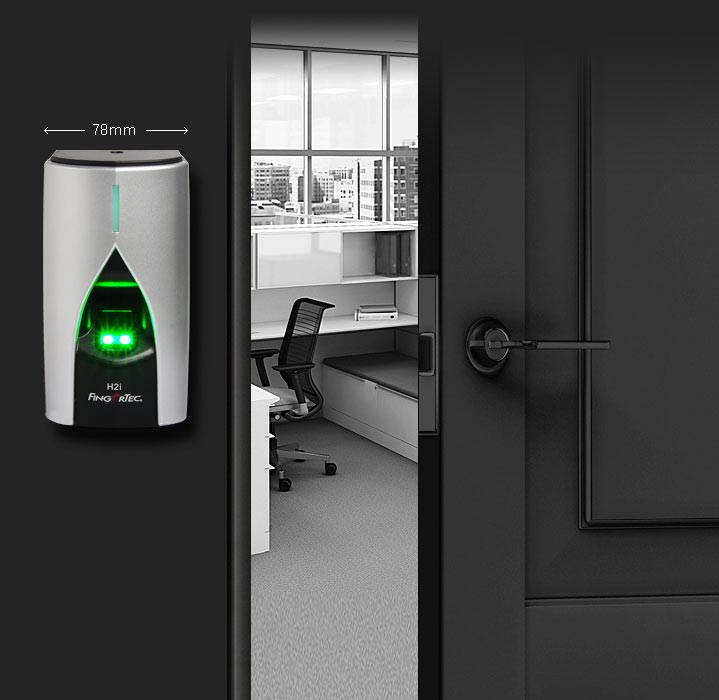

| PRODUCT DIMENSION (L X W X H), mm |
78 x 50 x 150 |
| STORAGE |
| • Fingerprint templates |
1,500 |
| • Transaction logs |
100,000 |
| ENROLLMENT & VERIFICATION |
| • Methods |
Fingerprint |
| • Recommended fingerprint per user ID |
2 |
| • Fingerprint placement |
Any angle |
| • Verification time (sec) |
< 1 |
| • FAR (%) |
< 0.0001 |
| • FRR (%) |
< 1 |

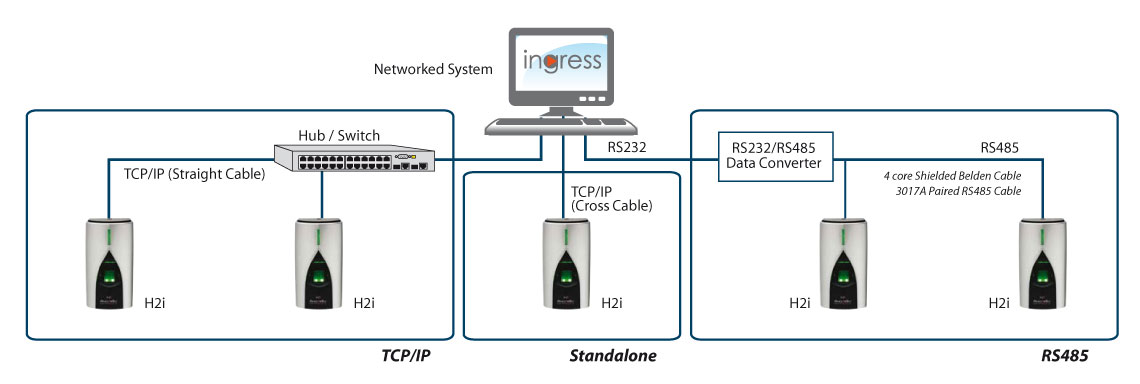

| COMMUNICATIONS |
| • Method |
TCP/IP, RS485, USB Disk |
| • Baud rates |
9600, 19200, 38400, 57600, 115200 |

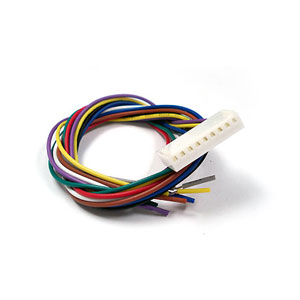

| • Wiegand |
26-bit input/output |
| OPERATING ENVIRONMENT |
| • Temperature (°C) |
0 ~ 45 |
| • Humidity (%) |
20 ~ 80 |
| • Power input |
DC 12V 3A |
| TIME ATTENDANCE |
| • Siren |
Built-in (Optional-External) |
| • Work codes |
Yes |
| MULTIMEDIA |
| • Voice |
Yes |

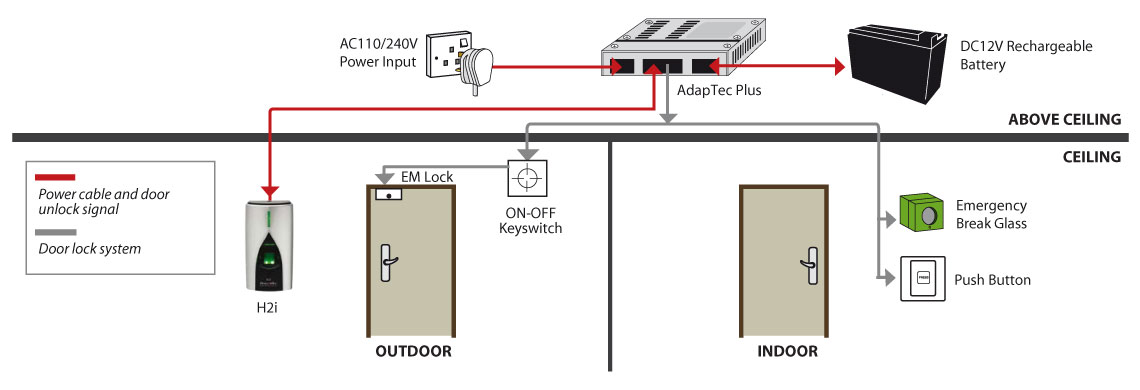

| ACCESS CONTROL |
| • EM lock driving output |
DC 12V 3A/ Relay output |
| • Alarm output |
NO/NC |
| • Anti-passback |
Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) |
English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian,
Portuguese (Portugal) and Spanish.
Other languages are available upon request. |
