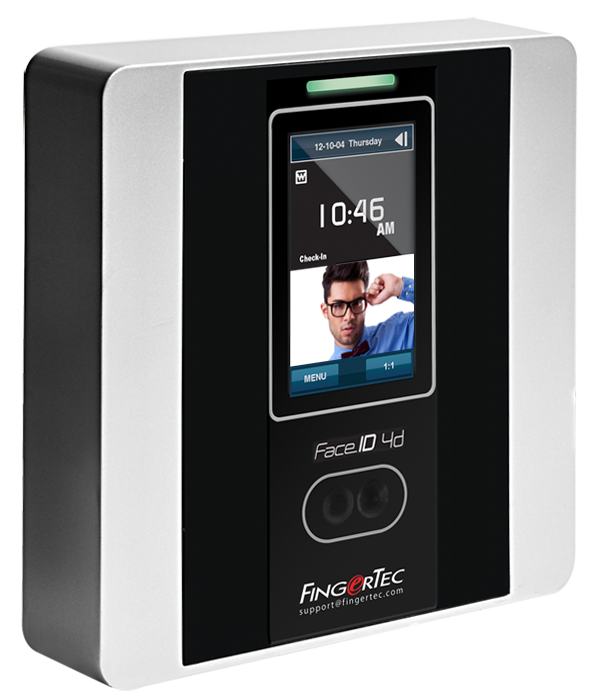

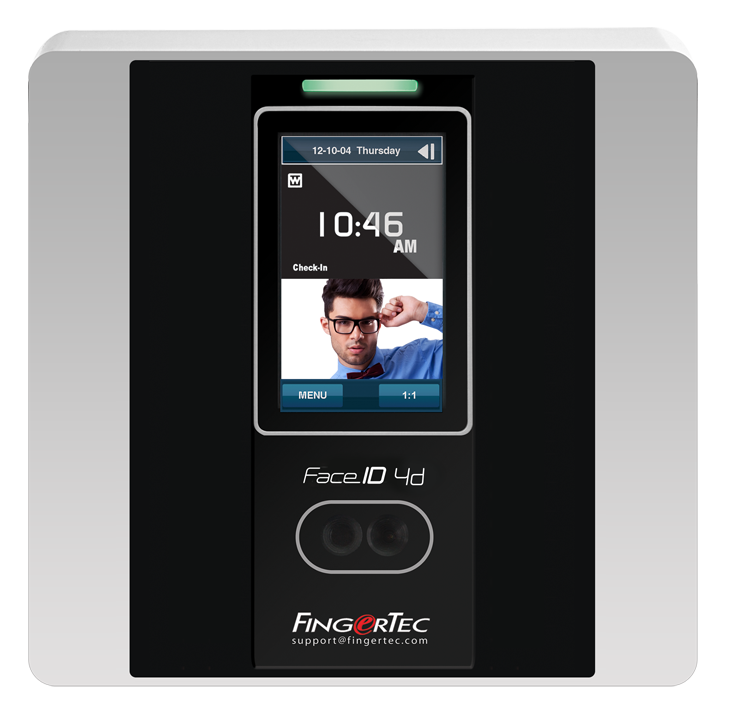

Face ID 4d
Performance at its Best



2 YEARS LIMITED WARRANTY

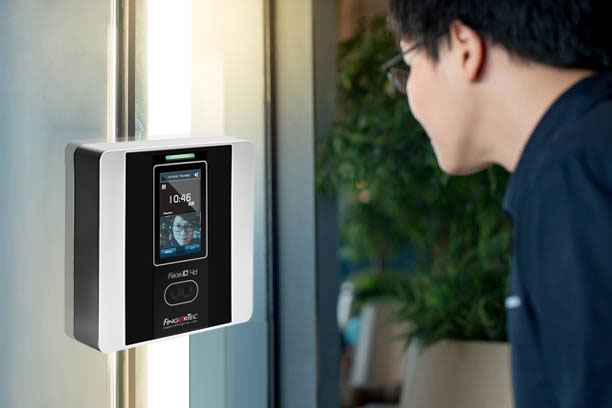

Time Attendance & Access Control

One Device Two Purposes
Storage Capacity

Larger Capacity For Ever-growing Corporate
Transactions
200,000
Faces
3,000
Verification & Communication Method

Options For All Scenarios
Verification
Face
Password
Face Password


Communication
TCP/IP
USB Host
TCP/IP RS485
Speed and Security, Both On-par

Never Compromise
False Acceptance Rate < 0.01%
False Rejection Rate < 0.1%
Speed < 2 sec
Face

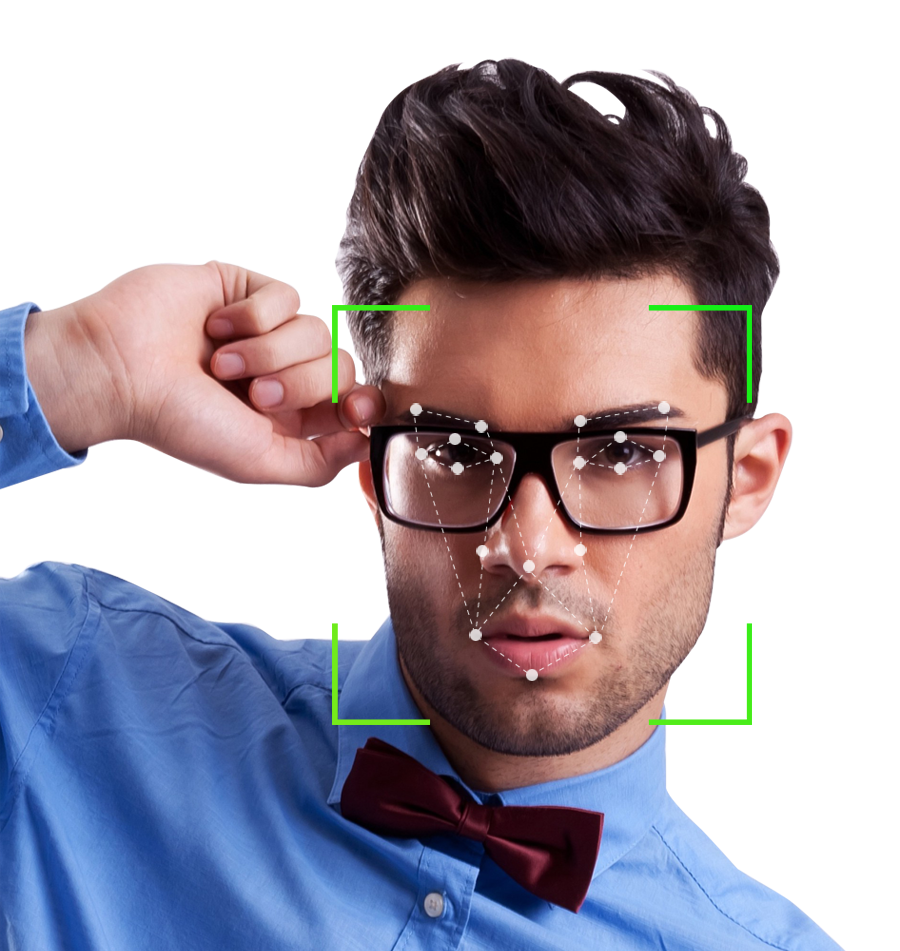

State of The Art Face Recognition Technology

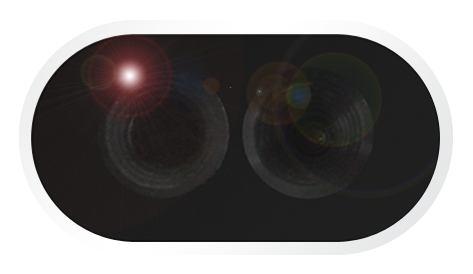

Double Security With Dual Camera
Advanced Camera High-Resolution Infrared Camera

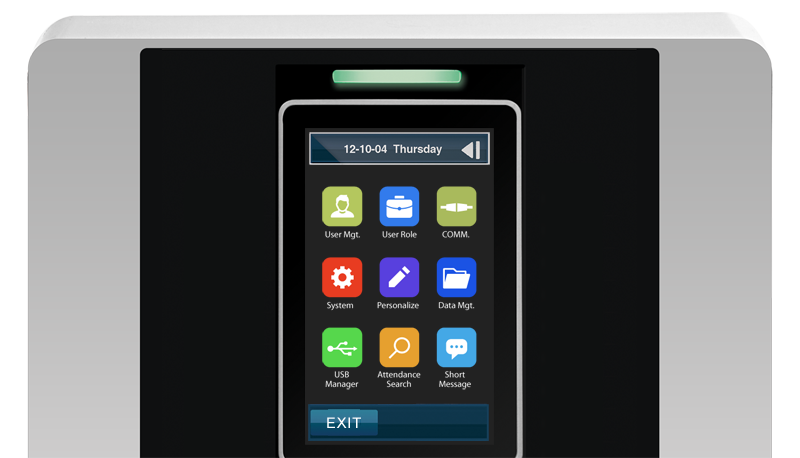

Simple & Intuitive UI

Navigation Has Never Been Easier

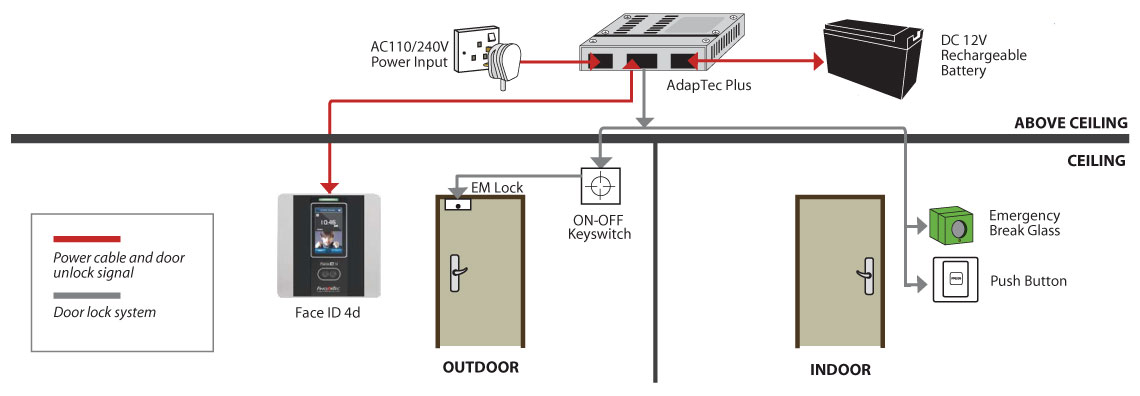

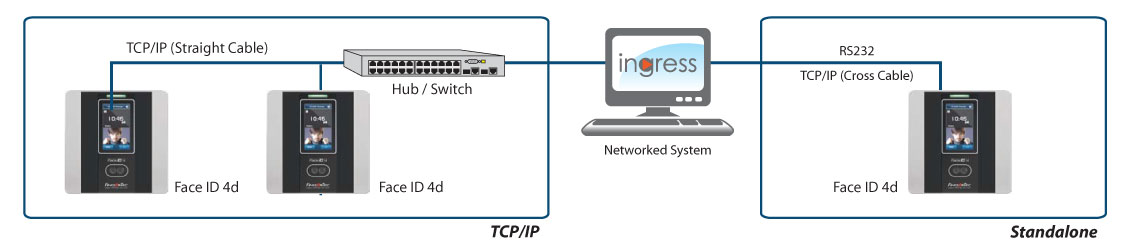

Layout Plan
System Communication
For illustration only
Installation Diagram
Specification
MODEL Face ID 4d
SURFACE FINISHING Acrylonitrile butadiene styrene/polycarbonate blend
TYPE OF SCANNER High-resolution infrared camera
MICROPROCESSOR 1.2GHz
MEMORY 128 MB RAM & 256 MB Flash
ALGORITHM Face BioBridge VX 7.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 151 x 26 x 150
STORAGE
• Face templates 3,000
• Transaction logs 200,000
ENROLLMENT & VERIFICATION
• Methods Face (1:1, 1:N), password
• Verification time (sec) < 1
• FAR (%) < 0.01
• FRR (%) < 0.1
COMMUNICATIONS
• Method TCP/IP, USB Disk
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 2A
TIME ATTENDANCE
• Siren Built-in (Optional external)
• Work codes Yes
• Fast Transaction Checking Yes
MULTIMEDIA
• Greeting voice Yes
• Display 2.8” 65k colour TFT touch screen panel
• Photo-ID Yes
• Short messaging Yes
• Photo capture Yes
• Daylight saving timer Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish. Other languages are available upon request.
SOFTWARE
Ingress

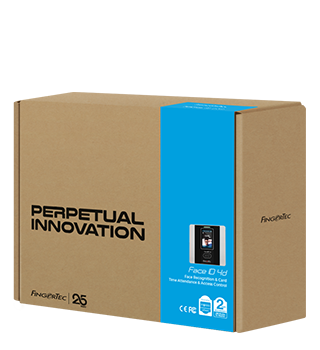

What's in the Box

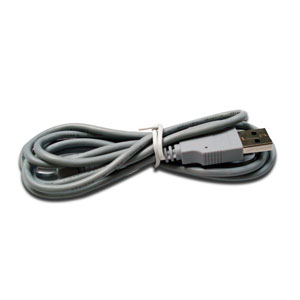

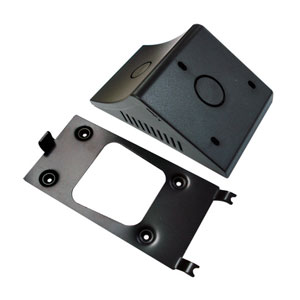

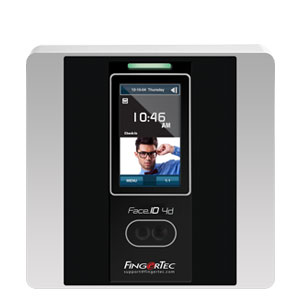

Face ID 4d Back Plate USB Extension

Product Card

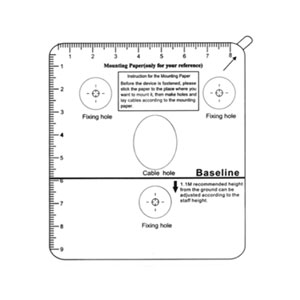

Mounting Paper

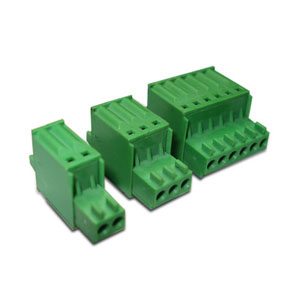

Connectors

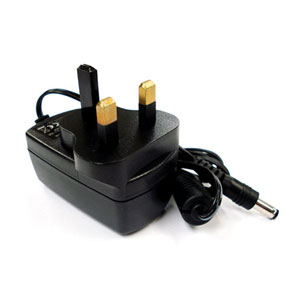

Power Adapter

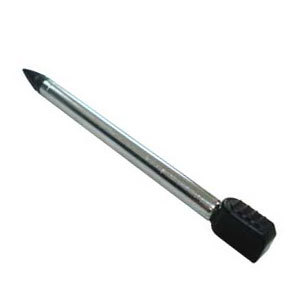

Stylus

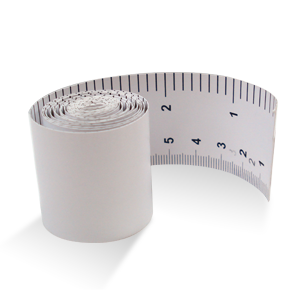

Measurement Tape

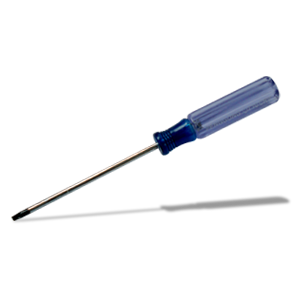

Star Screwdriver

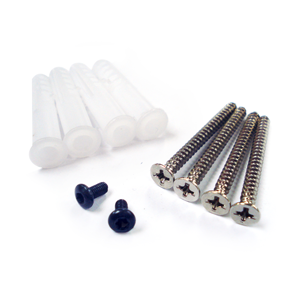

A Packet of Bolt
Product Information
