TA200 Plus
Second Generation Time Attendance



2 YEARS LIMITED WARRANTY
Store Everything Within

Storage Made To Hold
Transactions     200,000
Fingerprints 10,000
Cards 10,000
Verification & Communication Method

Cover a Wide Range of Requirements
Verification
Fingerprint
Password
Card
Password Fingerprint Card


Communication
TCP/IP
USB disk
RS232/ RS485
(optional)
POE & WiFi
(4G only applicable to non-POE devices)
TCP/IP USB disk
RS232/ RS485
(optional)
POE & WiFi
(4G only applicable to non-POE devices)
Numerous Card To Choose

Get One That Suits You
RFID MiFare HID
Speed & Security, Both On-par

Never Compromise
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed

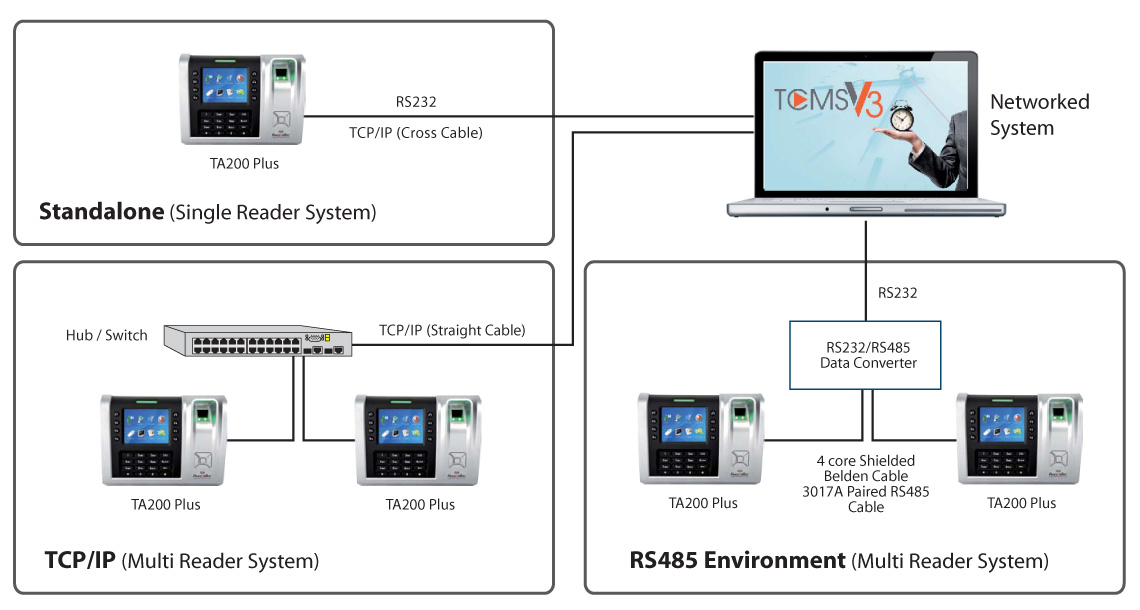

Layout Plan
for illustration only
Specification
MODEL TA200 Plus
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non-coated optical scanner
PROCESSOR 800 MHz
MEMORY 128MB flash memory and 64MB SDRAM
ALGORITHM BioBridge VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 200 x 56 x 160
STORAGE
• Fingerprint templates 10,000
• Card 10,000
• Transaction logs 200,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), Card & Password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
• HID: HID 1325, 26-bit, 125kHz Made to order
COMMUNICATIONS
• Method TCP/IP, USB disk (Optional: RS232, RS485, POE & WiFi . 3G only applicable to non-POE devices)
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A, DC 5V 2A (POE)
TIME ATTENDANCE
• Siren Built-in (Optional-External)
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.5” 65k colour TFT screen
• Photo-ID Yes
• Short messaging Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish.
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

Ingress
Access Control & Time Attendance

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

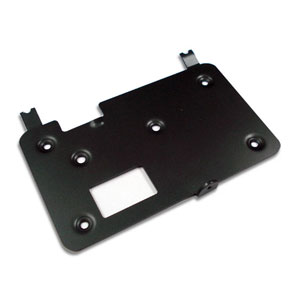

TA200 Plus Back Plate Power Adapter

Product Card

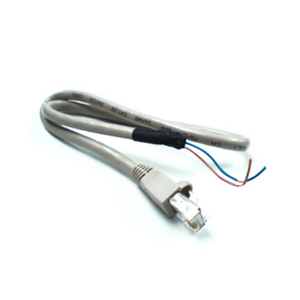

TCP- RS485 Cable

RFID Card (5pcs)

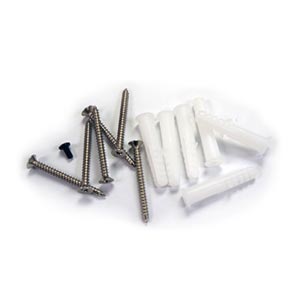

A Packet of Bolt
Product Information
