OFIS-Z | FingerTec

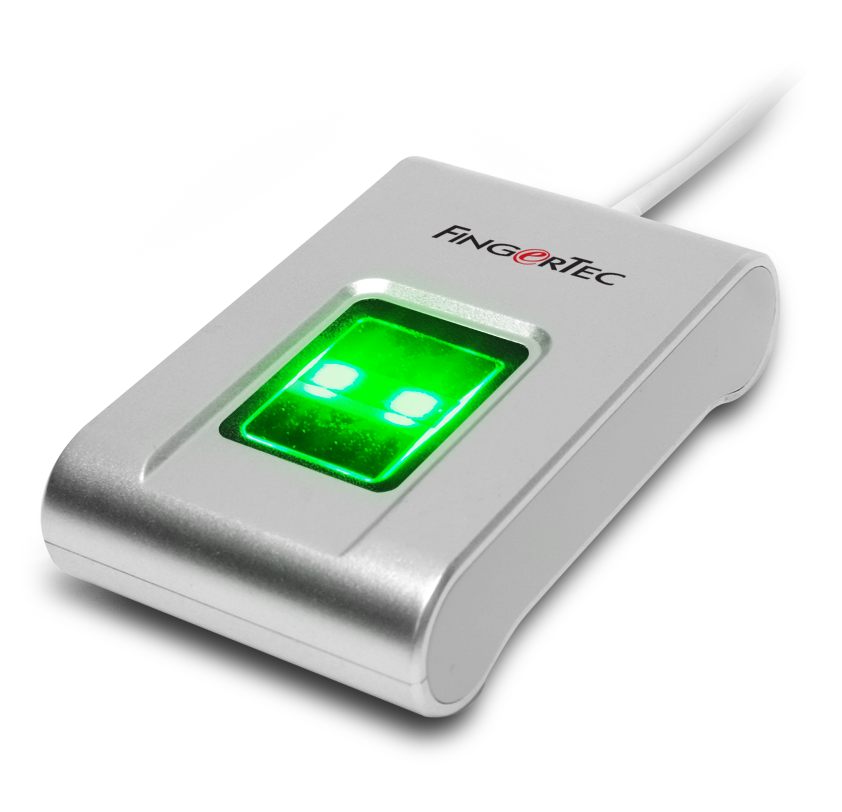

OFIS-Z
Online Verification and Enrollment



2 YEARS LIMITED WARRANTY
Precise Recognition

Precision at its Finest
Password Free

Use the OFIS-Z for security login instead of using a less secure password.
Integrated with Windows-Based Solutions

Higher Level of Security
Plug & Play

Portable For Hassle-Free Experience

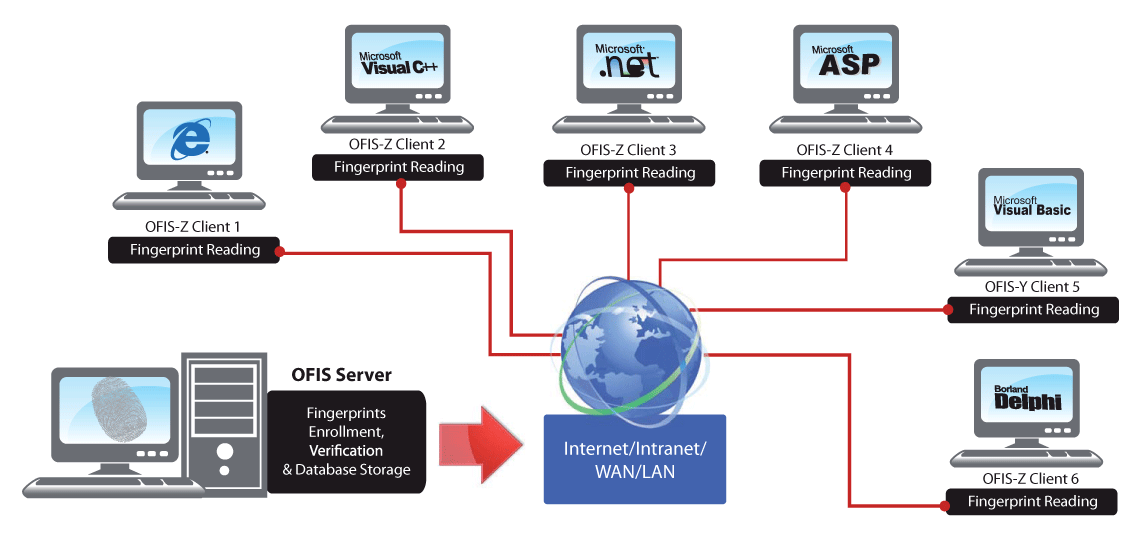

Layout Plan
Online Fingerprint Identification Environment
For illustration only
Specification
MODEL OFIS-Z
ALGORITHM BioBridge VX 9.0 / VX 10.0
SUPPORTING OS 32/64-bit Windows XP, Windows Vista, Windows 7, 8, 10 and Server 2008
PIXEL RESOLUTION 512 dpi (average x, y over the scanning area)
SCAN CAPTURE AREA, MM 15 x 18
SCAN DATA 8-bit of greyscale (256 levels of grey)
READER SIZE (APPROXIMATE) (L X W X H), MM 45 x 78 x 40
COMPATIBILITY USB 1.0, 1.1, 2.0 (Full speed) specifications
OS/BROWSER MS Windows/ MS Internet Explorer (IE 9)
POWER SUPPLY 5.0V +/- 0.25V, USB supply
OPERATING TEMPERATURE (°C) 0 ~ 55
OPERATING HUMIDITY (%) 20 ~ 80 non-condensing
STANDARD FCC CLASS FCC Class B, CE, USB
USAGE Indoor, home and office use
SOFTWARE info Manager
Software
More Than Just Software

Ingress

Ingress
Access Control & Time Attendance

TCMS V3

TCMS V3
Time Attendance
What's in the Box

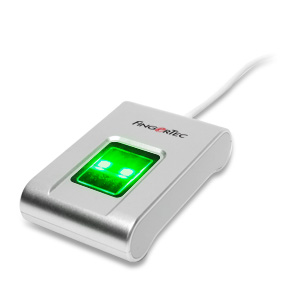

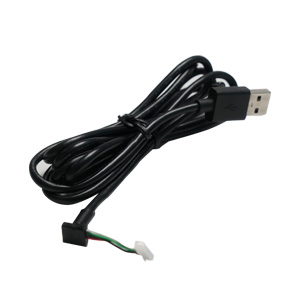

Ofis-Z USB Cable OFIS SDK 2.0 User Guide
Product Information
Pricing: $$$
