| MODEL |

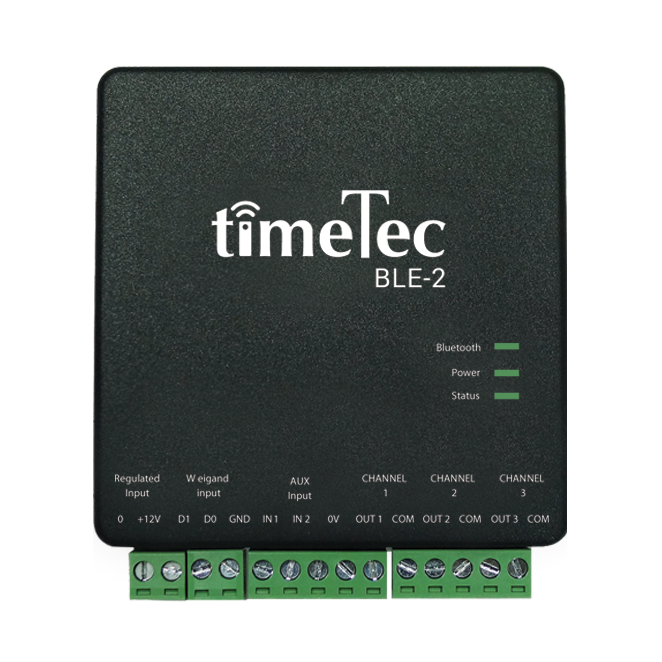

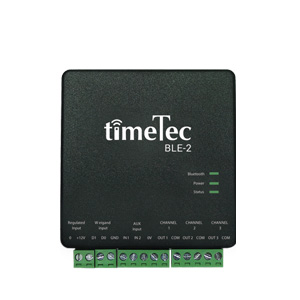

TimeTec BLE-2 |
| CHANNELS |
3 FORM C Relay output, NO/NC selected via jumper
Wiegand 26-bit input |
| DIMENSION (MM) |
85 (L) x 96 (W) x 33 (H) |
| POWER INPUT |
DC12V |
| WORKING TEMPERATURE (°C) |
0-45 |
| HUMIDITY (%) |
20-80 |
| COMMUNICATION |
Bluetooth Low Energy (BLE) 4.2, Wiegand 26-bit input |
| BLUETOOTH ENCRYPTION |
64-bit TimeTec Proprietary |
| EFFECTIVE DISTANCE (M) |
< 5m for Mobile App |
| LED INDICATOR |
Available |
| TRANSACTION RECORDS |
Unlimited, stored in cloud server |
| EVENT CAPACITY |
Unlimited, stored in a cloud server |

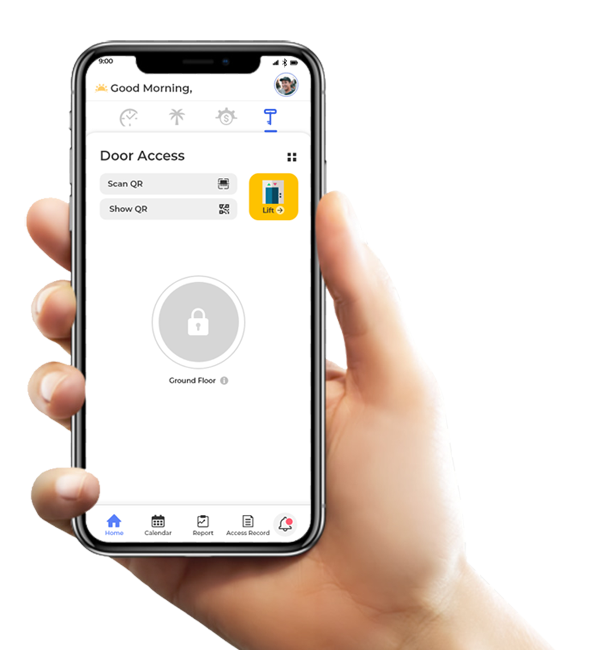

| MOBILE OS |
Android 4.0.2 and above, iOS 8.0 and above |
| APP & CLOUD |
i-TimeTec, TimeTec Access, TimeTec VMS, i-Neighbour |
| LANGUAGE (APP & CLOUD) |
English, Arabic, Malay, Indonesian, Spanish, Chinese Simplified,
Chinese Traditional, Thai, Turkish and Vietnamese.
Other languages are available upon request. |
