Verification
|
![]() |
Communication
|
![]() |
![]() |
![]() |
TCP/IP | RS485 | WiFi (Optional) |

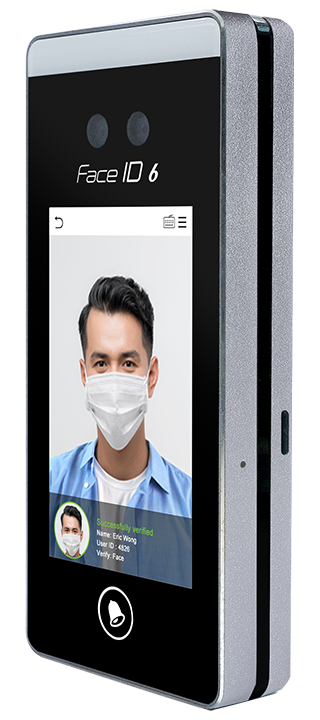

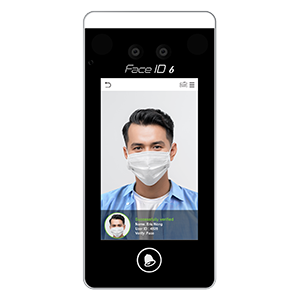

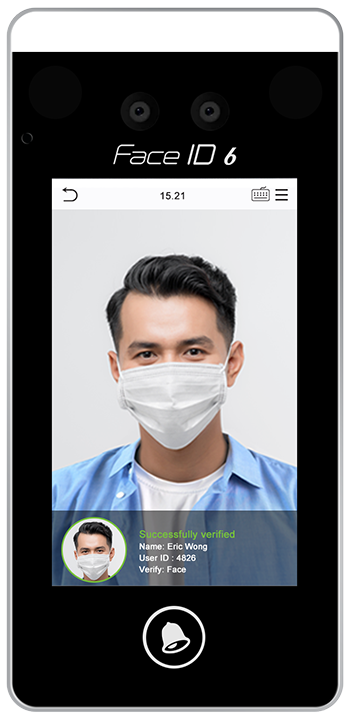

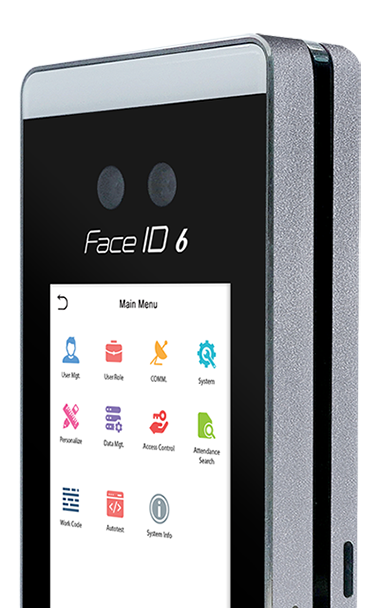

MODEL | Face ID 6 |
SURFACE FINISHING | Glass with aluminium frame |
TYPE OF SCANNER | 2MP Binocular Camera |
MICROPROCESSOR | 900 MHz dual-core CPU |
MEMORY | 512MB RAM, 512MB Flash |
ALGORITHM | Face: FTFace V3.9 & FTPalmVein 12.0 |
PUSH TECHNOLOGY | Yes |
PRODUCT DIMENSION (L X W X H), mm | 72 x 23 x 158 |
STORAGE | |
• Face templates | 1,000 |
• Palm templates | 800 |
• Card templates | 1,000 |
• Transactions | 150,000 |
ENROLLMENT & VERIFICATION | |
• Methods | Face (1:1, 1:N), Palm (1:N) & Password |
• Verification time (sec) | Face: <1s |
CARD TECHNOLOGY | |
• RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
• MIFARE: MFIS50/S70, 13.56MHz | Made to order |
• HID: HID 1325, 26-bit, 125kHz | Made to order |
COMMUNICATIONS | |
• Method | TCP/IP, USB Host, RS485, WiFi (Optional) |
• Wiegand | Input/Output |
OPERATING ENVIRONMENT | |
• Temperature (°C) | 0 ~ 45 |
• Humidity (%) | 10 ~ 90 |
• Power input | 12V 3A |
MULTIMEDIA | |
• Display | 4” touch screen |
• Photo-ID | Yes |
ACCESS CONTROL | |
• Lock relay output | Yes |
• Alarm output/auxiliary input | Yes |
• Exit button/ door sensor | Yes |
VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard) Other languages are available upon request. |
![]() |
|

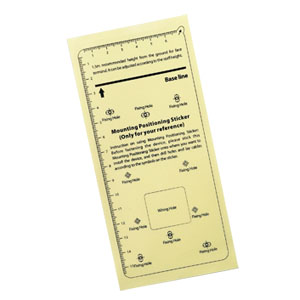

![]() Product Card ![]() Mounting Sticker ![]() RFID Card (5pcs) |
![]() Network Adapter Cable ![]() Power Adapter Cable ![]() Data Cable |

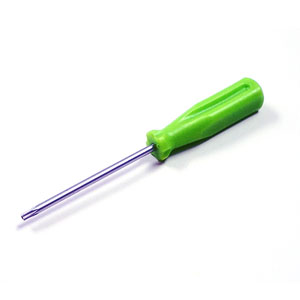

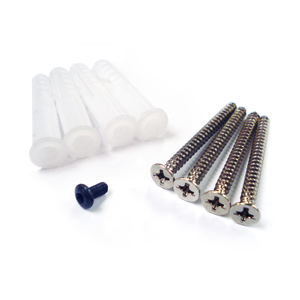

![]() Star Screwdriver ![]() A Packet of Bolt |
