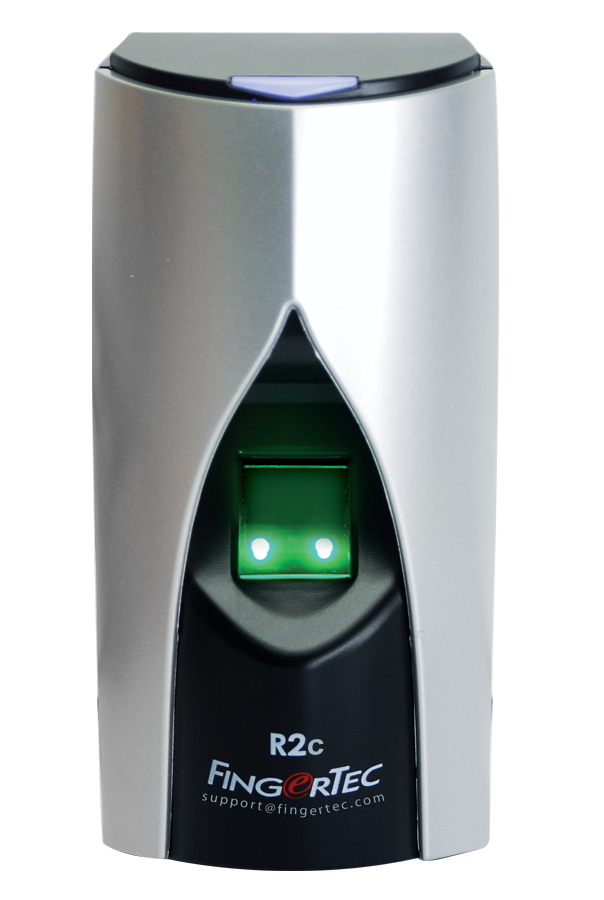

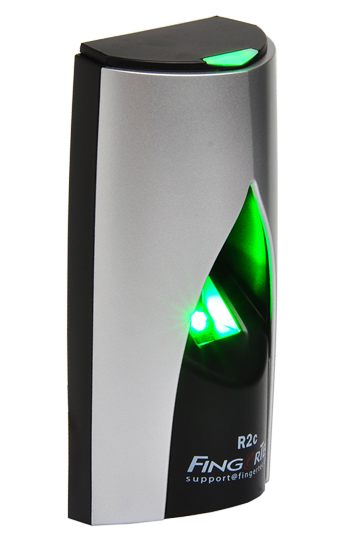

R2c
Alternative to Master Terminal



2 YEARS LIMITED WARRANTY
Cost-Effective Access Solution

Lower Cost Without Compromisation

Pair R2c with R2 to secure entrances and exits with absolute comfort and value for money.
Essential Biometrics With Easy Deployment

Designed For Versatility & Flexibility
Verification
Fingerprint
Card
Fingerprint Card


Communication
RS485

Master terminal

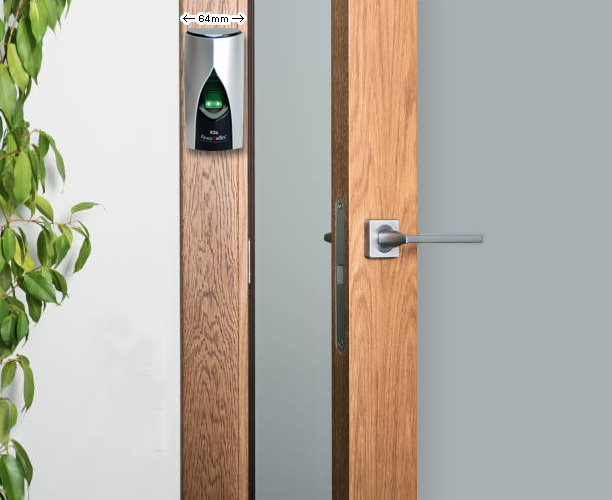

Compact Design
Fits in Most Narrow Spaces and Door Frames
Comprehensive Card Options
Standardise One Option For All Card Access
RFID MiFare
Access Control Management
Everything Under One Roof
All EM Lock driving outputs, alarm outputs, and anti-passback via the R2c can be diverted to be managed by a master terminal or Ingressus Controller in an access control system.
Anti-Passback
Tailgate, A Thing of The Past

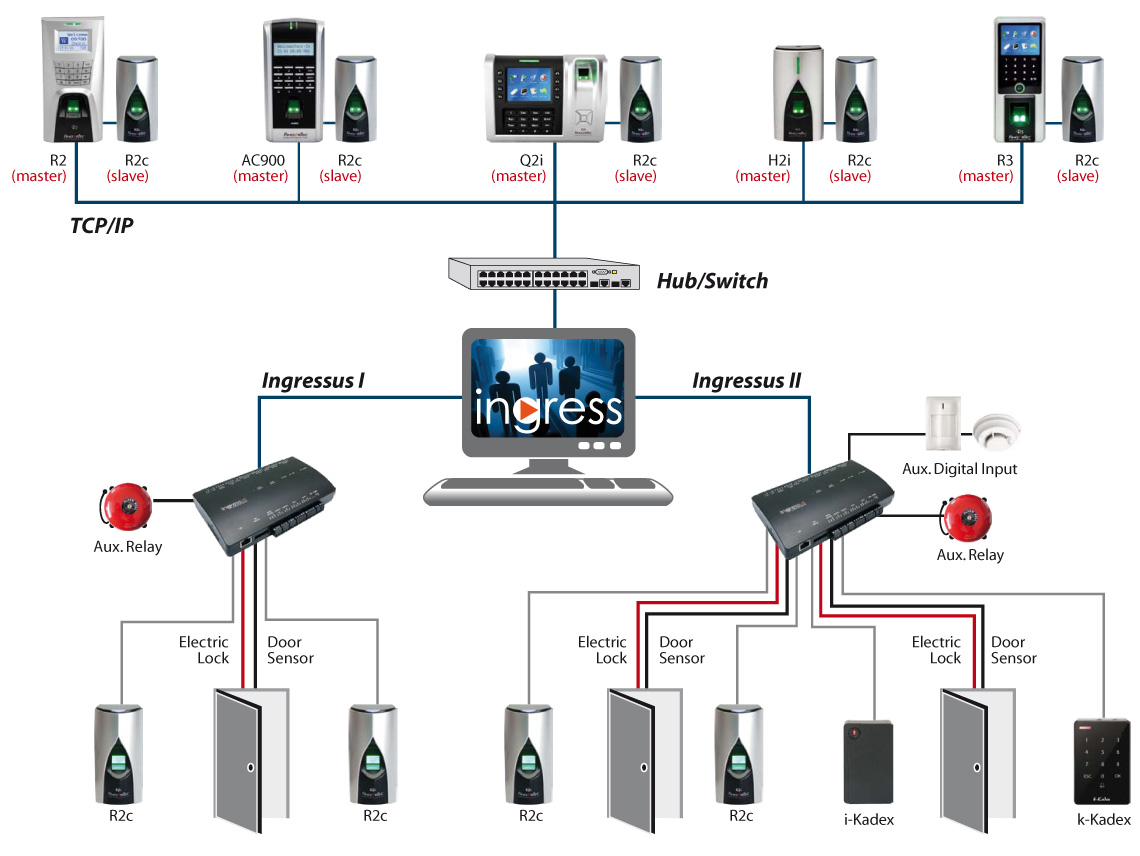

Layout Plan
System Communication
For illustration only
Specification
MODEL R2c
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non-coated optical scanner
PROCESSOR Managed by master
MEMORY
ALGORITHM Supports BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 64 x 42 x 135
STORAGE
• Fingerprint templates Storge in master terminal
• Transaction logs
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:N) & card
• Recommended fingerprint per user ID Managed by master
• Fingerprint placement Any angle
• Verification time (sec) Managed by master
• FAR (%)
• FRR (%)
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
COMMUNICATIONS
• Method RS485 (Connects to Master Terminal)
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input Managed by master
ACCESS CONTROL
• EM lock driving output Managed by master
• Alarm output
• Anti-passback
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

Ingress
Access Control & Time Attendance

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

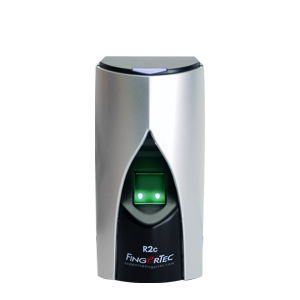

R2c

Product Card

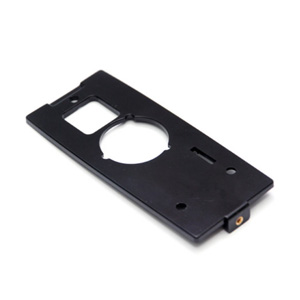

Back Plate

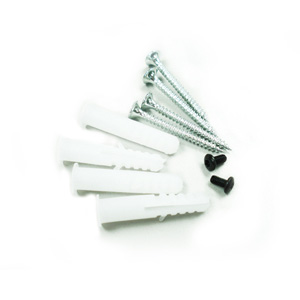

A Packet of Bolt
Product Information
Pricing: $$$
