R2 | FingerTec
R2
Compact Yet Impactful



2 YEARS LIMITED WARRANTY
Extended Capacity
Fingerprints
3,000
Transactions
120,000
Essential Biometrics with Easy Deployment
Verification
Fingerprint
Password
Fingerprint Password


Communication
TCP/IP
RS232/ RS485
USB
TCP/IP RS485/ RS485 USB
Compact Design

Fits in Most Narrow Spaces
Exception Verification For Corporate

Enhanced Speed & Reliability
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed
Layout Plan

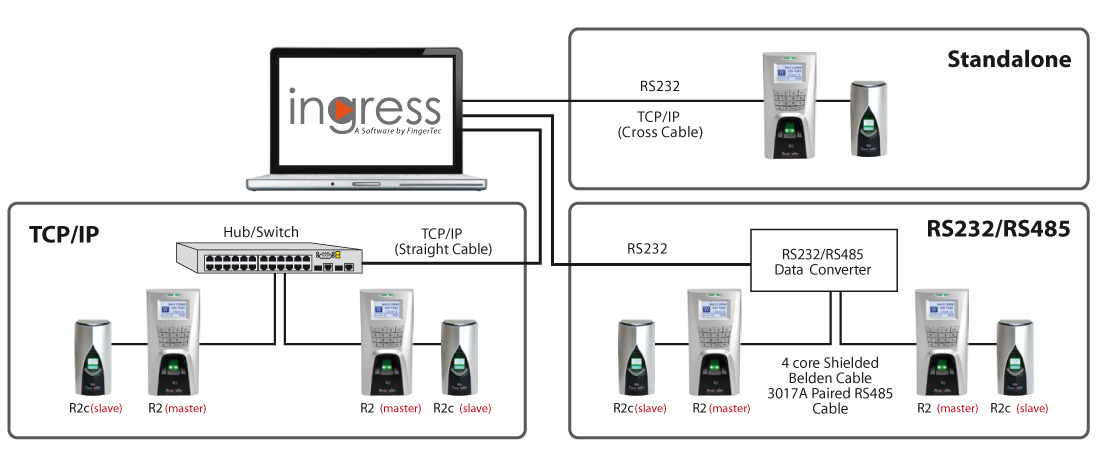

System Communication
For illustration only

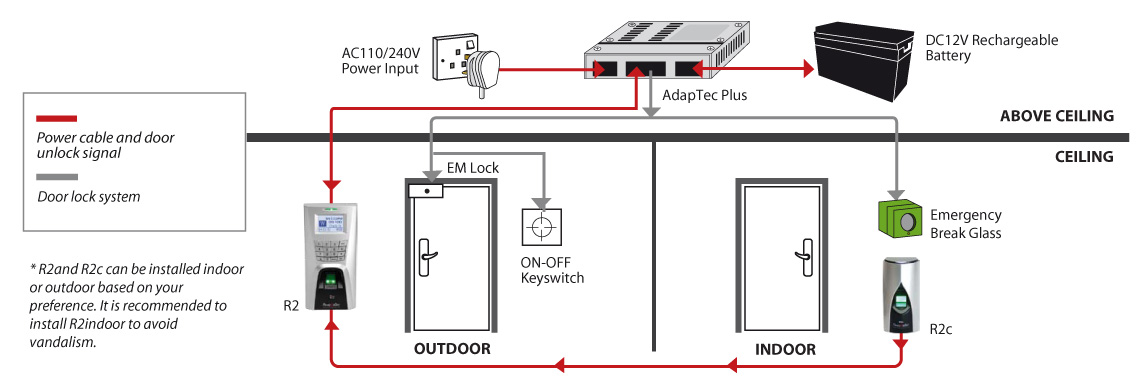

Installation Diagram
Specification
MODEL R2
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
PROCESSOR 400 MHz
MEMORY 128 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 94 x 50 x 189
STORAGE
• Fingerprint templates 3,000
• Transaction logs 120,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Work codes Yes
MULTIMEDIA
• Greeting voice Yes
• Short messaging Yes
ACCESS CONTROL
• EM lock driving output DC 12V 3A / relay output
• Alarm output NO/NC
• Anti-passback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Traditional (Cantonese), Simplified Chinese, Vietnamese, Spanish, Portuguese (Portugal), Turkish and Persian.
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

Ingress
Access Control & Time Attendance

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

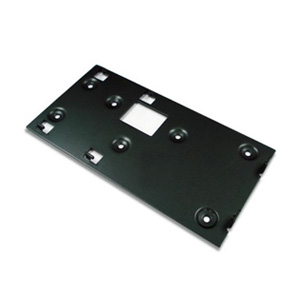

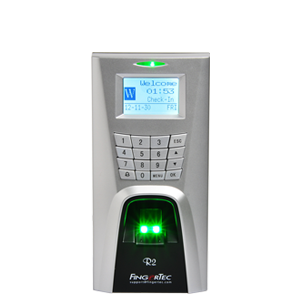

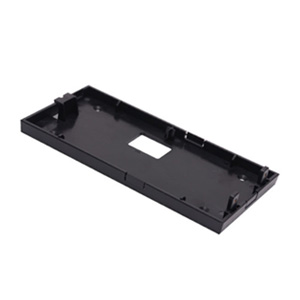

R2 Back Plate (thin) Back Plate (thick)

Product Card

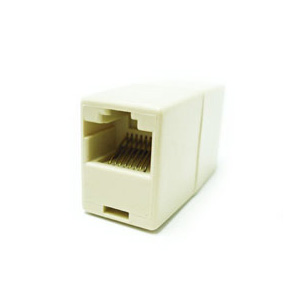

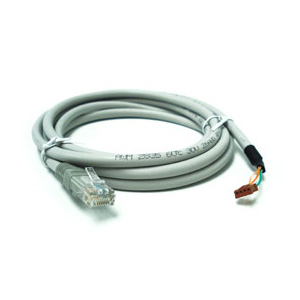

TCP/IP Connector

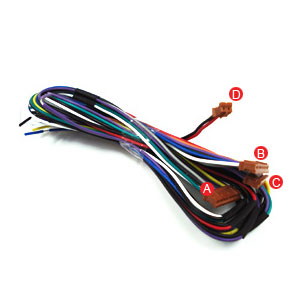

Wire Connectors

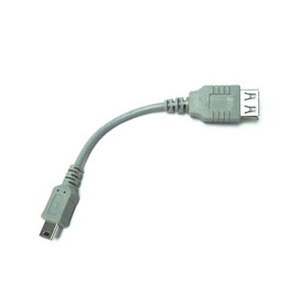

USB Extension

Wire Connectors

Star Screwdriver

A Packet of Bolt
